Carry-on baggage screeningPASSAGIX 536 ARGO EASY MOVE
The PASSAGIX® 536 ARGO EASY MOVE is an equipment developed and manufactured in Europe by the Italian company GILARDONI S.p.A.
It has been designed based on the latest concepts applied to the field of baggage screening systems.
It is particularly well-suited to screening hand luggage and small parcels in confined spaces for temporary applications.
- Technology based on the new ARGO line
- New user interface design
- Compact and lightweight equipment
- Adjustable conveyor speed
- Easy to move
How it works
The data processing software runs on a real-time Linux platform with a latest-generation processor that offers powerful image processing capabilities.
The system’s compact design makes deployment quick and easy, thanks in particular to:
• the operator station integrated into the machine,
• large wheels with brakes for easy movement,
• integrated, extendable input/output conveyors.
Our Services
Design, installation, training, and maintenance provided by VISIOM and its agencies.
Studies
Our work group analyses, develops and proposes solutions best meeting the specific expectations of each individual case.
Installation
Over the years, our teams have acquired extensive experience and adaptability to ensure that our systems are installed under the best possible conditions.
Training
Our approved training programs on the operation and maintenance of our equipment are created and customised according to the operational context.
Maintenance
We provide a complete maintenance, on-call duty and hotline service for all our products.
Colour and black-and-white images projected onto the screen
High-definition image

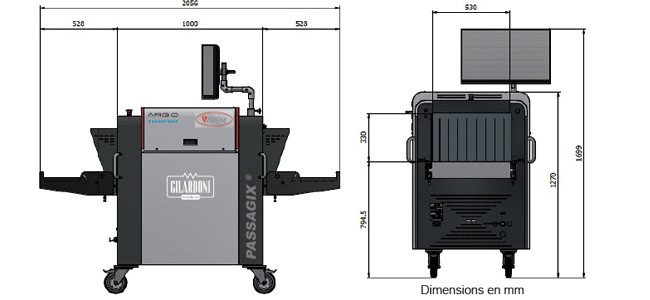

Equipment dimensions
Dimensions: 2056 (L) x 875 (l) x 1270 (h)mm
Tunnel size: 530 (L) x 330 (h)mm
Conveyor height: 794,5 mm

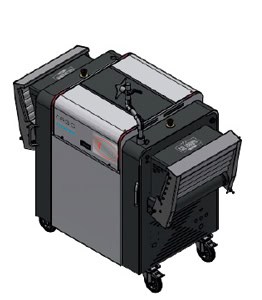

View of the equipment when folded away
Easy move
Operator's station
LED monitor: 27″/1920×1080
PASSAGIX ARGO range
• Passagix 640 ARGO: 620×420 mm
• Passagix 536 ARGO: 530×330 mm
• Passagix 640 DV ARGO: 620×420 mm
Regulations and certification
CE compliance.
Compliance with all international and national standards (NFC74 100) relating to X-ray equipment.
Average dose per piece of luggage: <1.4 μSV
Leakage radiation at 10 cm: <1.0 μSV/h.
Guaranteed to pose no risk of damage to photographic film up to ISO 1600/33 DIN.
STAC-certified.
- Equipment specifications
- installation data
- OPTIONS
EQUIPMENT
Dimensions
2056 (L) x 875 (l) x 1270 (h) mm
Net weight
372 Kg
Tunnel size
530 (L) x 330 (h) mm
Conveyor height
794,5 mm
Conveyor speed
0.2 m/s - 0.3 m/s
Maximum luggage weight
205 Kg
Performance
Resolution
42 AWG
Penetration
40 mm of steel
Photodiodes
Double row in an L-shape
X-ray generator
High-frequency monobloc
30kHz
Voltage / Current
160KV/ 0.5mA
Cooling
oil bath – forced ventilation
Beam direction
diagonally upwards
Duty cycle
100%
Operator's station
LED monitor
27’’/1920x1080
Image processing
Standard functions
Date/time/baggage counter display Contrast optimisation Edge enhancement Image inversion Removal of low-level colours Pseudo-colour Variable or continuous magnification: up to 64x magnification Image rotation
Advanced features
Density alarm (adjustable threshold) Organic alarm (adjustable threshold) Digital image storage
Additional features
Multiplexing
NetServer (equipment monitoring)
TIP
Introduction to Threat Recognition
Access
Secure and prioritised
ADS
Automatic Detection System
EQUIPMENT
Mechanical engineering
Steel frame on castors, fitted with locking levelling feet
Power supply
Single-phase 230 VAC ± 10%
Frequency
50/60 Hz +/- 3Hz
Consumption
< 1 kW max
Operating temperature
0°C to 40°C
Storage temperature
-20°C to + 60°C
Humidity
5% to 95% (non-condensing)
Protection Rating
IP 22
Noise level
< 60 dB (A)
Available controls
Controls
Machine start-up Conveyor control Advanced function buttons Zoom buttons Alarm button Emergency stop
OPTIONS
Digital archiving of images and sessions, Free-roll input/output tables, Image printing, Touchscreen, UPS
